A catalog of numerical relativity simulations being run at ICTS-TIFR Bengaluru

The numerical simulations are being run on the sonic cluster. They contain details of ongoing, already completed, and failed runs to date.

This page was first created on Feb 20, 2024.

Some notes:

  1. Codes developed in waveformtools help in finding and automatically parsing parameters from NR simulation directories, and output a markdown table here. The code can be accessed here. Note: to be possibly moved to gwnrtools.
  2. Codes developed in waveformtools can also find and process waveforms. They can
    • find simulations
    • fetch the simulation parameters from Params.input, TargetParams.input, and bfi params.
    • gather their status
    • compute Ncycles from the trajectory of AHs on the xy plane
    • process waveforms :
    1. extrapolate waveforms using scri / waveformtools
    2. apply CoM corrections
      • compute Ncycles from the (2,2) mode
      • Output a markdown table for easy viewing
  3. Some tables are repeated to enable easy viewing of variable amounts of information on devices with smaller screens.
  4. Failed simulations: some have failed usually close to the merger.
  5. Reference time is chosen to be the diameter of the smallest waveform extraction sphere.
  6. Quantities with ‘_ref’ suffixed are values computed at the requested reference time.

Computation of reference parameters

  1. Parameters are interpolated onto the requested reference time using cubic interpolation.
  2. Values are retrieved from the Horizons.h5 file.
  3. The orbital reference time is computed as the (coordinate and gauge dependent), angular frequency of the AHs in the x-y plane at the requested reference time.
  4. The Chi parameters are dimensionless spin components.
  5. Masses at reference time are computed using dimensionful spin (J components) and Christodoulou masses using the same Kerr relation.

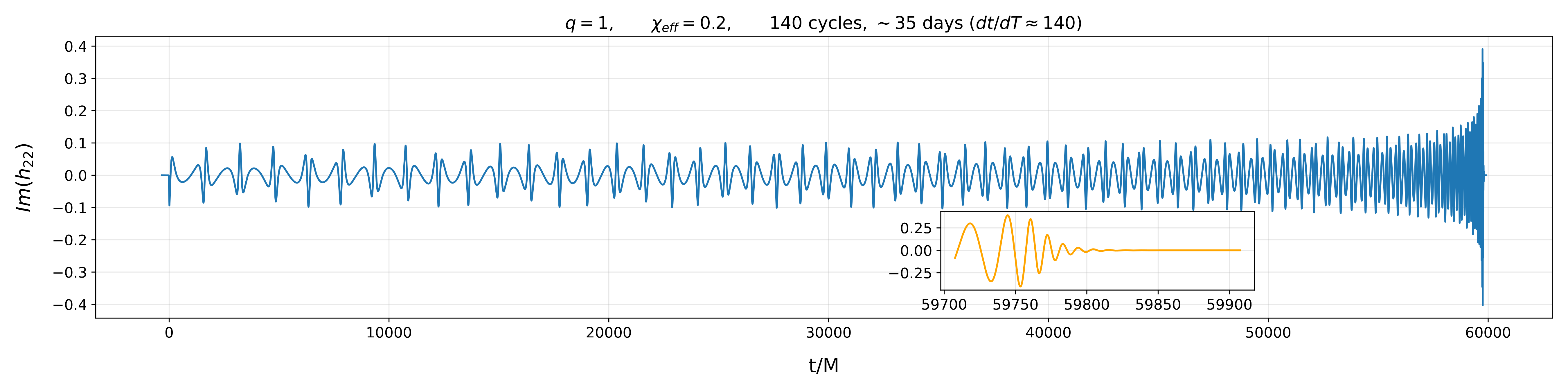

Sample waveform

One waveform

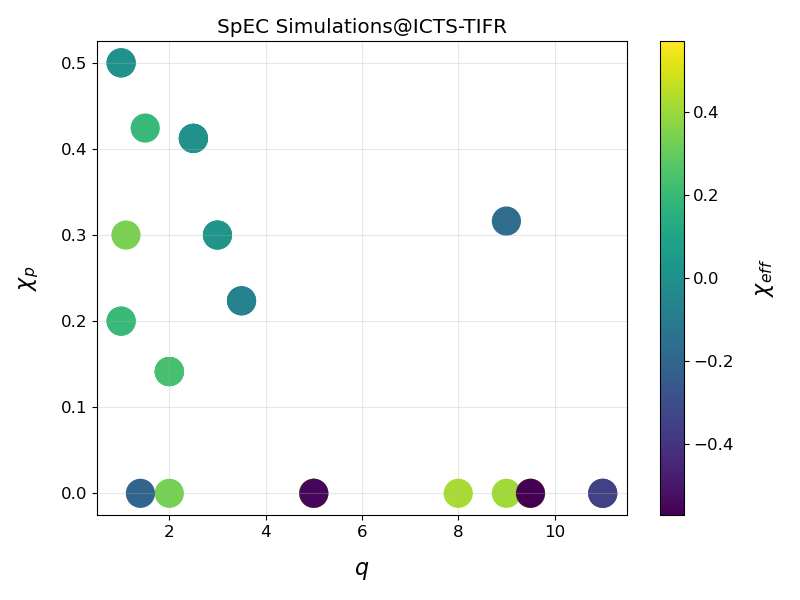

Parameter space

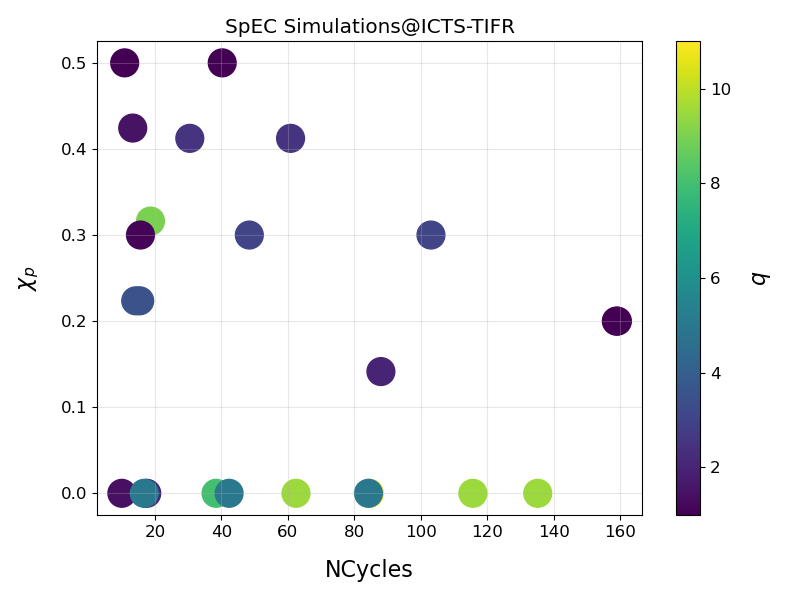

qChiPrec len

Simulation diagnostics

Simulation summary

Database of simulations

Click here to view the live status

1. ICTSEccParallel sim details with parameters at $t=0$ (ID)

  Sl. No. Status Omega0 Ncycles Ncycles (2,2) adot0 D0 MassRatio ChiA ChiB IDType ReferenceTime SemiMajorAxis Eccentricity AnomalyAngle ZwickyDays ChiEff ChiPrec RequestedReferenceTime ReqRefTime Omega_ref ChiA_ref ChiB_ref MA_ref MB_ref
ICTSEccParallel01 1 {2: ‘Completed’, 3: ‘Completed’} 0.0152181 {2: 48.39433257277633, 3: 48.37193576690978} {} 0.000193835 15.4136 3 (0.3, 0.0, 0.0) (0.3, 0.0, 0.0) SHK 0 16 0.04 0.4 0 0 0.3 308 308 0.01572 (0.29679, 0.04377, 0.00035) (0.28026, 0.10699, 0.0009) 0.75839 0.252798
ICTSEccParallel02 2 {2: ‘Completed’, 3: ‘Completed’} 0.0120649 {2: 60.79164475437962, 3: 60.74888914239595} {} 0.000792413 17.9896 2.5 (-0.1, -0.4, 0.0) (0.1, 0.4, 0.0) SHK 0 18 0.08 1.5 0 0 0.412311 390 390 0.0151 (-0.04346, -0.41, 0.00096) (-0.02343, 0.41163, -0.00237) 0.72931 0.291727
ICTSEccParallel03 3 {2: ‘Completed’, 3: ‘Completed’} 0.0283864 {2: 15.418839986900768, 3: 15.402097333178874} {} 0 9.9 3.5 (0.2, 0.1, 0.0) (0.2, 0.1, 0.0) SHK 0 11 0.1 0 0 0 0.223607 200 200 0.02954 (0.16693, 0.14876, 0.00183) (0.07503, 0.21057, 0.00493) 0.782626 0.223605
ICTSEccParallel04 4 {2: ‘Completed’, 3: ‘Completed’} 0.0284862 {2: 17.542971285454605, 3: 17.512670219519514} {} 0 9.9 2 (0.0, 0.0, 0.4) (0.0, 0.0, 0.2) SHK 0 11 0.1 0 0 0.333333 0 200 200 0.02702 (0.0, -0.0, 0.40004) (-0.0, -0.0, 0.20002) 0.679876 0.334992
ICTSEccParallel05 5 {2: ‘Completed’, 3: ‘Completed’} 0.0285284 {2: 10.05280249392835, 3: 10.05279658387064} {} 0 9.9 1.4 (0.0, 0.0, -0.5) (0.0, 0.0, 0.2) SHK 0 11 0.1 0 0 -0.208333 0 196 196 0.03237 (-0.0, -0.0, -0.49993) (-0.0, 0.0, 0.20002) 0.601288 0.418749
ICTSEccParallel06 6 {2: ‘Completed’, 3: ‘Completed’} 0.0202785 {2: 18.67366574703785, 3: 18.673537808836816} {} -0.00139355 12.0799 9 (0.1, -0.3, -0.2) (0.0, 0.0, 0.1) SHK 0 11 0.14 4 0 -0.17 0.316228 200 200 0.03255 (0.14673, -0.28213, -0.19713) (-0.00588, 0.00142, 0.09982) 0.915633 0.100125
ICTSEccParallel07 7 {2: ‘Completed’, 3: ‘Completed’} 0.0245271 {2: 38.38493651014642, 3: 38.40542563100516} {} 0.0014817 10.7901 8 (0.0, 0.0, 0.5) (0.0, 0.0, -0.2) SHK 0 11 0.09 1.3 0 0.422222 0 196 196 0.02921 (0.0, 0.0, 0.49996) (-0.0, -0.0, -0.19998) 0.916253 0.111665
ICTSEccParallel08 8 {2: ‘Completed’, 3: ‘Completed’} 0.0368929 {2: 16.796344433755152, 3: 16.777482049067693} {} 0 8.36 5 (0.0, 0.0, 0.1) (0.0, 0.0, -0.2) SHK 0 11 0.24 0 0 0.05 0 200 200 0.02624 (0.0, 0.0, 0.09999) (0.0, 0.0, -0.19997) 0.834381 0.1675
ICTSEccParallel09 9 {3: ‘Running’} 0.00456364 {} {} 9.47404 33.2806 11 (0.0, 0.0, -0.4) (0.0, 0.0, 0.2) SHK 0 28 0.19 3 0 -0.35 0 882 882 0.00555 (-0.0, 0.0, -0.39999) (-0.0, 0.0, 0.19998) 0.934823 0.0837463
ICTSEccParallel10 10 {2: ‘Completed’, 3: ‘Completed’} 0.0171697 {2: 84.5241249247341, 3: 82.51455931380978} {} -0.000456592 14.3231 11 (0.0, 0.0, -0.4) (0.0, 0.0, 0.2) SHK 0 16 0.11 6 0 -0.35 0 284 284 0.01442 (-0.0, -0.0, -0.40001) (0.0, -0.0, 0.19999) 0.934814 0.0837463
ICTSEccParallel11 11 {2: ‘Unknown’, 3: ‘Halted’} 0.0125784 {} {} -0.000721122 17.1104 9 (0.0, 0.0, 0.5) (0.0, 0.0, -0.4) SHK 0 16 0.1 4 0 0.41 0 338 338 0.01384 (-0.0, -0.0, 0.49999) (0.0, 0.0, -0.39997) 0.927699 0.10198
ICTSEccParallel12 12 {2: ‘Error’, 3: ‘Completed’} 0.0125772 {2: 115.62290286961056, 3: 114.60591880183198} {} -0.000721039 17.1103 9.5 (0.0, 0.0, 0.3) (0.0, 0.0, 0.3) SHK 0 16 0.1 4 0 0.3 0 338 338 0.014 (-0.0, 0.0, 0.3) (-0.0, -0.0, 0.29999) 0.914882 0.0963046
ICTSEccParallel13 13 {2: ‘Completed’, 3: ‘Unknown’} 0.0125772 {2: 135.11902431622948} {} -0.000721039 17.1103 9.5 (0.0, 0.0, 0.6) (0.0, 0.0, 0.3) SHK 0 16 0.1 4 0 0.571429 0 338 338 0.0136 (-0.0, 0.0, 0.6) (-0.0, -0.0, 0.3) 0.944596 0.0963046
ICTSEccParallel14 14 {2: ‘Completed’, 3: ‘Completed’} 0.0125772 {2: 62.42457597447514, 3: 59.84811252443887} {} -0.000721039 17.1103 9.5 (0.0, 0.0, -0.6) (0.0, 0.0, -0.3) SHK 0 16 0.1 4 0 -0.571429 0 338 338 0.01595 (0.0, 0.0, -0.60001) (0.0, 0.0, -0.29998) 0.944598 0.0963046
ICTSEccParallel15 15 {2: ‘Completed’, 3: ‘Halted’} 0.0125938 {2: 73.1265915587726} {} -0.000722186 17.1107 5 (0.0, 0.0, 0.3) (0.0, 0.0, 0.3) SHK 0 16 0.1 4 0 0.3 0 338 338 0.01408 (0.0, -0.0, 0.3) (0.0, -0.0, 0.29999) 0.842662 0.168533
ICTSEccParallel16 16 {2: ‘Completed’, 3: ‘Completed’} 0.0125938 {2: 84.21377799921035, 3: 84.06952658008673} {} -0.000722186 17.1107 5 (0.0, 0.0, 0.6) (0.0, 0.0, 0.3) SHK 0 16 0.1 4 0 0.55 0 338 338 0.01369 (0.0, -0.0, 0.6) (0.0, -0.0, 0.29999) 0.870032 0.168533
ICTSEccParallel17 17 {2: ‘Completed’, 3: ‘Completed’} 0.0125938 {2: 42.309785790523215, 3: 42.298155362443495} {} -0.000722186 17.1107 5 (0.0, 0.0, -0.6) (0.0, 0.0, -0.3) SHK 0 16 0.1 4 0 -0.55 0 338 338 0.01589 (0.0, -0.0, -0.59999) (0.0, 0.0, -0.29999) 0.870032 0.168533

1.A Updated with new reference time

  Sl. No. Status Omega0 Ncycles Ncycles (2,2) adot0 D0 MassRatio ChiA ChiB IDType ReferenceTime SemiMajorAxis Eccentricity AnomalyAngle ZwickyDays ChiEff ChiPrec RequestedReferenceTime ReqRefTime Omega_ref ChiA_ref ChiB_ref MA_ref MB_ref
ICTSEccParallel01 1 {2: ‘Completed’, 3: ‘Completed’} 0.0152181 {2: 48.39433257277633, 3: 48.37193576690978} {} 0.000193835 15.4136 3 (0.3, 0.0, 0.0) (0.3, 0.0, 0.0) SHK 0 16 0.04 0.4 0 0 0.3 308 308 0.01572 (0.29679, 0.04377, 0.00035) (0.28026, 0.10699, 0.0009) 0.75839 0.252798
ICTSEccParallel02 2 {2: ‘Completed’, 3: ‘Completed’} 0.0120649 {2: 60.79164475437962, 3: 60.74888914239595} {} 0.000792413 17.9896 2.5 (-0.1, -0.4, 0.0) (0.1, 0.4, 0.0) SHK 0 18 0.08 1.5 0 0 0.412311 390 390 0.0151 (-0.04346, -0.41, 0.00096) (-0.02343, 0.41163, -0.00237) 0.72931 0.291727
ICTSEccParallel03 3 {2: ‘Completed’, 3: ‘Completed’} 0.0283864 {2: 15.418839986900768, 3: 15.402097333178874} {} 0 9.9 3.5 (0.2, 0.1, 0.0) (0.2, 0.1, 0.0) SHK 0 11 0.1 0 0 0 0.223607 200 200 0.02954 (0.16693, 0.14876, 0.00183) (0.07503, 0.21057, 0.00493) 0.782626 0.223605
ICTSEccParallel04 4 {2: ‘Completed’, 3: ‘Completed’} 0.0284862 {2: 17.542971285454605, 3: 17.512670219519514} {} 0 9.9 2 (0.0, 0.0, 0.4) (0.0, 0.0, 0.2) SHK 0 11 0.1 0 0 0.333333 0 200 200 0.02702 (0.0, -0.0, 0.40004) (-0.0, -0.0, 0.20002) 0.679876 0.334992
ICTSEccParallel05 5 {2: ‘Completed’, 3: ‘Completed’} 0.0285284 {2: 10.05280249392835, 3: 10.05279658387064} {} 0 9.9 1.4 (0.0, 0.0, -0.5) (0.0, 0.0, 0.2) SHK 0 11 0.1 0 0 -0.208333 0 196 196 0.03237 (-0.0, -0.0, -0.49993) (-0.0, 0.0, 0.20002) 0.601288 0.418749
ICTSEccParallel06 6 {2: ‘Completed’, 3: ‘Completed’} 0.0202785 {2: 18.67366574703785, 3: 18.673537808836816} {} -0.00139355 12.0799 9 (0.1, -0.3, -0.2) (0.0, 0.0, 0.1) SHK 0 11 0.14 4 0 -0.17 0.316228 200 200 0.03255 (0.14673, -0.28213, -0.19713) (-0.00588, 0.00142, 0.09982) 0.915633 0.100125
ICTSEccParallel07 7 {2: ‘Completed’, 3: ‘Completed’} 0.0245271 {2: 38.38493651014642, 3: 38.40542563100516} {} 0.0014817 10.7901 8 (0.0, 0.0, 0.5) (0.0, 0.0, -0.2) SHK 0 11 0.09 1.3 0 0.422222 0 196 196 0.02921 (0.0, 0.0, 0.49996) (-0.0, -0.0, -0.19998) 0.916253 0.111665
ICTSEccParallel08 8 {2: ‘Completed’, 3: ‘Completed’} 0.0368929 {2: 16.796344433755152, 3: 16.777482049067693} {} 0 8.36 5 (0.0, 0.0, 0.1) (0.0, 0.0, -0.2) SHK 0 11 0.24 0 0 0.05 0 200 200 0.02624 (0.0, 0.0, 0.09999) (0.0, 0.0, -0.19997) 0.834381 0.1675
ICTSEccParallel09 9 {2: ‘To be submitted’, 3: ‘Halted’} 0.00456364 {} {} 9.47404 33.2806 11 (0.0, 0.0, -0.4) (0.0, 0.0, 0.2) SHK 0 28 0.19 3 0 -0.35 0 882 882 0.00555 (-0.0, 0.0, -0.39999) (-0.0, 0.0, 0.19998) 0.934823 0.0837463
ICTSEccParallel10 10 {2: ‘Completed’, 3: ‘Completed’} 0.0171697 {2: 84.5241249247341, 3: 82.51455931380978} {} -0.000456592 14.3231 11 (0.0, 0.0, -0.4) (0.0, 0.0, 0.2) SHK 0 16 0.11 6 0 -0.35 0 284 284 0.01442 (-0.0, -0.0, -0.40001) (0.0, -0.0, 0.19999) 0.934814 0.0837463
ICTSEccParallel11 11 {2: ‘Unknown’, 3: ‘Halted’} 0.0125784 {} {} -0.000721122 17.1104 9 (0.0, 0.0, 0.5) (0.0, 0.0, -0.4) SHK 0 16 0.1 4 0 0.41 0 338 338 0.01384 (-0.0, -0.0, 0.49999) (0.0, 0.0, -0.39997) 0.927699 0.10198
ICTSEccParallel12 12 {2: ‘Error’, 3: ‘Completed’} 0.0125772 {2: 115.62290286961056, 3: 114.60591880183198} {} -0.000721039 17.1103 9.5 (0.0, 0.0, 0.3) (0.0, 0.0, 0.3) SHK 0 16 0.1 4 0 0.3 0 338 338 0.014 (-0.0, 0.0, 0.3) (-0.0, -0.0, 0.29999) 0.914882 0.0963046
ICTSEccParallel13 13 {2: ‘Completed’, 3: ‘Unknown’} 0.0125772 {2: 135.11902431622948} {} -0.000721039 17.1103 9.5 (0.0, 0.0, 0.6) (0.0, 0.0, 0.3) SHK 0 16 0.1 4 0 0.571429 0 338 338 0.0136 (-0.0, 0.0, 0.6) (-0.0, -0.0, 0.3) 0.944596 0.0963046
ICTSEccParallel14 14 {2: ‘Completed’, 3: ‘Completed’} 0.0125772 {2: 62.42457597447514, 3: 59.84811252443887} {} -0.000721039 17.1103 9.5 (0.0, 0.0, -0.6) (0.0, 0.0, -0.3) SHK 0 16 0.1 4 0 -0.571429 0 338 338 0.01595 (0.0, 0.0, -0.60001) (0.0, 0.0, -0.29998) 0.944598 0.0963046
ICTSEccParallel15 15 {2: ‘Completed’, 3: ‘Halted’} 0.0125938 {2: 73.1265915587726} {} -0.000722186 17.1107 5 (0.0, 0.0, 0.3) (0.0, 0.0, 0.3) SHK 0 16 0.1 4 0 0.3 0 338 338 0.01408 (0.0, -0.0, 0.3) (0.0, -0.0, 0.29999) 0.842662 0.168533
ICTSEccParallel16 16 {2: ‘Completed’, 3: ‘Completed’} 0.0125938 {2: 84.21377799921035, 3: 84.06952658008673} {} -0.000722186 17.1107 5 (0.0, 0.0, 0.6) (0.0, 0.0, 0.3) SHK 0 16 0.1 4 0 0.55 0 338 338 0.01369 (0.0, -0.0, 0.6) (0.0, -0.0, 0.29999) 0.870032 0.168533
ICTSEccParallel17 17 {2: ‘Completed’, 3: ‘Completed’} 0.0125938 {2: 42.309785790523215, 3: 42.298155362443495} {} -0.000722186 17.1107 5 (0.0, 0.0, -0.6) (0.0, 0.0, -0.3) SHK 0 16 0.1 4 0 -0.55 0 338 338 0.01589 (0.0, -0.0, -0.59999) (0.0, 0.0, -0.29999) 0.870032 0.168533

2. EccContPrec

  Sl. No. Status $Omega_{0}$ Ncycles Ncycles (2,2) adot0 D0 MassRatio ChiA ChiB IDType ReferenceTime SemiMajorAxis Eccentricity AnomalyAngle ZwickyDays $Chi_{eff}$ $Chi_{p}$
EccContPrecDiff001 1 {3: ‘Completed’, 4: ‘Completed’} 0.0103729 {3: 103.01430054967433, 4: 102.95066161184174} {3: 107.41976856783918, 4: 107.2966440688715} 0.000141159 20.2307 3 (0.3, 0.0, 0.0) (0.2, 0.0, 0.1) SHK 0 21 0.04 0.4 0 0.025 0.3
EccContPrecDiff002 2 {3: ‘Halted’, 4: ‘Halted’} 0.00799436 {} {} 0.000555982 23.994 2.5 (0.1, 0.4, 0.0) (0.5, 0.0, 0.0) SHK 0 24 0.08 1.5 0 0 0.412311
EccContPrecDiff003 3 {2: ‘Completed’, 3: None} 0.0283864 {2: 14.224607497794048} {2: 17.51906258699352} 0 9.9 3.5 (-0.2, 0.1, 0.0) (0.2, 0.0, -0.3) SHK 0 11 0.1 0 0 -0.0666667 0.223607
EccContPrecDiff004 4 {2: ‘Completed’, 3: ‘Completed’} 0.0312909 {2: 14.74091510773156, 3: 15.648219173738543} {} 0 9.35 1.1 (0.0, 0.3, 0.2) (0.0, 0.1, 0.5) SHK 0 11 0.15 0 0 0.342857 0.3
EccContPrecDiff005 5 {2: ‘Completed’, 3: ‘Completed’} 0.0331294 {2: 10.900573211367973, 3: 10.900875019299674} {2: 12.106245796855, 3: 12.108582183910833} 0 9.02 1 (0.3, 0.4, 0.0) (0.0, 0.0, 0.0) SHK 0 11 0.18 0 0 0 0.5
EccContPrecDiff006 6 {2: ‘Completed’, 3: ‘Completed’} 0.0278232 {2: 13.311119330379896, 3: 13.325567918834619} {3: 17.132439666082558} 0.00365934 10.0079 1.5 (0.3, 0.3, 0.2) (0.1, 0.0, 0.2) SHK 0 11 0.21 1 0 0.2 0.424264
EccContPrecDiff007 7 {2: ‘Completed’, 3: ‘Completed’} 0.0171827 {2: 30.4822281886772, 3: 30.488054612491805} {2: 30.51949011892798, 3: 30.510827762781076} 0.00104911 13.9867 2.5 (0.1, 0.4, 0.0) (0.5, 0.0, 0.0) SHK 0 14 0.08 1.5 0 0 0.412311
EccContPrecDiff008 8 {2: ‘Completed’, 3: ‘Completed’} 0.018468 {2: 40.21426704175213, 3: 40.2427412095804} {2: 40.69528814795823, 3: 40.73781477765863} 0 13.94 1 (0.3, 0.4, 0.0) (0.0, 0.0, 0.0) SHK 0 17 0.18 0 0 0 0.5

2.A Updated with new reference time

  Status ReqRefTime Omega0 Omega_ref Ncycles Ncycles (2,2) D0 MassRatio Eccentricity ChiA ChiA_ref ChiB ChiB_ref ChiEff ChiPrec SemiMajorAxis AnomalyAngle
EccContPrecDiff001 {3: ‘Completed’, 4: ‘Completed’} 488 0.0103729 0.01035 {3: 103.163524748665, 4: 103.0998858108324} {} 20.2307 3 0.04 (0.3, 0.0, 0.0) (0.298, 0.03459, 0.00013) (0.2, 0.0, 0.1) (0.19109, 0.05745, 0.10091) 0.025 0.3 21 0.4
EccContPrecDiff002 {3: ‘To be submitted’, 4: ‘To be submitted’} 630 0.00799436 0.00956 {} {} 23.994 2.5 0.08 (0.1, 0.4, 0.0) (0.0566, 0.4084, 0.00119) (0.5, 0.0, 0.0) (0.48391, 0.12575, -0.00169) 0 0.412311 24 1.5
EccContPrecDiff003 {2: ‘Completed’, 3: ‘Completed’} 200 0.0283864 0.02997 {2: 14.622647544224002, 3: 14.649825754403615} {} 9.9 3.5 0.1 (-0.2, 0.1, 0.0) (-0.21854, 0.0473, 0.00118) (0.2, 0.0, -0.3) (0.12828, 0.13623, -0.30813) -0.0666667 0.223607 11 0
EccContPrecDiff004 {2: ‘Completed’, 3: ‘Completed’} 200 0.0312909 0.0261 {2: 15.640527214997167, 3: 15.648219173738543} {} 9.35 1.1 0.15 (0.0, 0.3, 0.2) (-0.11201, 0.27312, 0.207) (0.0, 0.1, 0.5) (-0.03389, 0.08306, 0.50189) 0.342857 0.3 11 0
EccContPrecDiff005 {2: ‘Completed’, 3: ‘Completed’} 200 0.0331294 0.02967 {2: 11.31891532322482, 3: 11.31921713115652} {} 9.02 1 0.18 (0.3, 0.4, 0.0) (0.04714, 0.49766, 0.00922) (0.0, 0.0, 0.0) (0.0, 0.0, -1e-05) 0 0.5 11 0
EccContPrecDiff006 {2: ‘Completed’, 3: ‘Completed’} 200 0.0278232 0.03393 {2: 13.641526867605535, 3: 13.655975456060258} {} 10.0079 1.5 0.21 (0.3, 0.3, 0.2) (0.20087, 0.37083, 0.20521) (0.1, 0.0, 0.2) (0.09094, 0.03907, 0.20046) 0.2 0.424264 11 1
EccContPrecDiff007 {2: ‘Completed’, 3: ‘Completed’} 254 0.0171827 0.02117 {2: 30.70211091220585, 3: 30.70793733602045} {} 13.9867 2.5 0.08 (0.1, 0.4, 0.0) (0.03239, 0.41102, 0.00348) (0.5, 0.0, 0.0) (0.46742, 0.17744, -7e-05) 0 0.412311 14 1.5
EccContPrecDiff008 {2: ‘Completed’, 3: ‘Completed’} 294 0.018468 0.01159 {2: 40.48864239390782, 3: 40.517116561736096} {} 13.94 1 0.18 (0.3, 0.4, 0.0) (0.20131, 0.45766, 0.00263) (0.0, 0.0, 0.0) (-0.0, -0.0, 0.0) 0 0.5 17 0

3. EccPrec

  Sl. No. Status $Omega_{0}$ Ncycles Ncycles (2,2) adot0 D0 MassRatio ChiA ChiB IDType $Chi_{eff}$ $Chi_{p}$ ZwickyDays SemiMajorAxis Eccentricity AnomalyAngle ReferenceTime
EccPrecDiff001 1 {2: ‘Completed’, 3: None, 4: ‘Halted’} 0.0145989 {2: 158.75173043184722} {2: 160.28866912541906} -3.14159 18 1 (0.0, 0.2, 0.2) (0.2, 0.0, 0.2) SHK 0.2 0.2 0 18 0.1 0 0
EccPrecDiff002 2 {2: ‘Completed’, 3: ‘Completed’} 0.0145989 {2: 158.87933751966946, 3: 159.08805614873373} {2: 159.40688514075356, 3: 159.5540345654728} -3.14159 18 1 (0.0, 0.2, 0.2) (0.2, 0.0, 0.2) SHK 0.2 0.2 0 9 0.1 0 0
EccPrecDiff003 3 {3: ‘Error’} 0.0190602 {} {} 0 11 2 (0.1, 0.1, 0.2) (0.3, 0.0, 0.3) SHK 0.233333 0.141421 0 11 0.25 0 0
EccPrecDiff003a 4 {2: ‘Unknown’, 3: ‘Error’, 4: ‘Error’} 0.0190602 {} {} 0 11 2 (0.1, 0.1, 0.2) (0.3, 0.0, 0.3) SHK 0.233333 0.141421 nan nan nan nan nan
EccPrecDiff004 5 {} 0.0190602 {} {} 0 18 2 (0.1, 0.1, 0.2) (0.3, 0.0, 0.3) SHK 0.233333 0.141421 0 18 0.25 0 0
eccprecrun4b 6 {2: ‘Error’, 3: ‘Completed’, 4: ‘Halted’, 5: ‘Halted’} 0.0190602 {3: 87.96206247791672} {3: 89.63646113984629} 0 14.4 2 (0.1, 0.1, 0.2) (0.3, 0.0, 0.3) SHK 0.233333 0.141421 nan nan 0.4 nan nan

3.A Updated with new reference time

  Status ReqRefTime Omega0 Omega_ref Ncycles Ncycles (2,2) D0 MassRatio Eccentricity ChiA ChiA_ref ChiB ChiB_ref ChiEff ChiPrec SemiMajorAxis AnomalyAngle
EccPrecDiff001 {2: ‘Completed’, 3: ‘Completed’, 4: ‘To be submitted’} 730 0.0145989 0.00167 {2: 158.95570737526782, 3: 159.2101688205419} {} 18 1 0.1 (0.0, 0.2, 0.2) (-0.02181, 0.19931, 0.1995) (0.2, 0.0, 0.2) (0.19885, 0.02167, 0.19997) 0.2 0.2 18 0
EccPrecDiff002 {2: ‘Completed’, 3: ‘Completed’} 730 0.0145989 0.00167 {2: 159.08542739779307, 3: 159.29414602685733} {} 18 1 0.1 (0.0, 0.2, 0.2) (-0.02181, 0.19931, 0.1995) (0.2, 0.0, 0.2) (0.19885, 0.02167, 0.19996) 0.2 0.2 9 0
EccPrecDiff003 {3: ‘Unknown’} nan 0.0190602 nan {} {} 11 2 0.25 (0.1, 0.1, 0.2) nan (0.3, 0.0, 0.3) nan 0.233333 0.141421 11 0
EccPrecDiff003a {2: ‘Unknown’, 3: ‘Error’, 4: ‘Error’} nan 0.0190602 nan {} {} 11 2 nan (0.1, 0.1, 0.2) nan (0.3, 0.0, 0.3) nan 0.233333 0.141421 nan nan
eccprecrun4b {2: ‘Error’, 3: ‘Completed’, 4: ‘Halted’, 5: ‘Halted’} 330 0.0190602 0.00429 {3: 88.20583841222718} {} 14.4 2 nan (0.1, 0.1, 0.2) (0.08876, 0.10947, 0.20035) (0.3, 0.0, 0.3) (0.29346, 0.05178, 0.30195) 0.233333 0.141421 nan nan

4. A small excerpt

Sim alias D0 MassRatio ChiA ChiB Eccentricity
EccContPrecDiff001 20.2307 3 (0.3,0,0.0) (0.2,0.0,0.1) 0.04
EccContPrecDiff002 23.994 2.5 (0.1,0.4,0.0) (0.5,0.0,0.0) 0.08
EccContPrecDiff003 9.9 3.5 (-0.2,0.1,0.0) (0.2,0.0,-0.3) 0.1
EccContPrecDiff004 9.35 1.1 (0,0.3,0.2) (0,0.1,0.5) 0.15
EccContPrecDiff005 9.02 1 (0.3,0.4,0) (0,0,0) 0.18
EccContPrecDiff006 10.0079 1.5 (0.3,0.3,0.2) (0.1,0,0.2) 0.21
EccContPrecDiff007 13.9867 2.5 (0.1,0.4,0.0) (0.5,0.0,0.0) 0.08
EccContPrecDiff008 13.94 1 (0.3,0.4,0) (0,0,0) 0.18
